| MERRA Twister & Winder, 2022 yr, S/Z twists in single operation. |
| Item Number | 18820 |
| Quantity | 1 |
| Machine | MERRA Twister & Winder, 2022 yr, S/Z twists in single operation. |

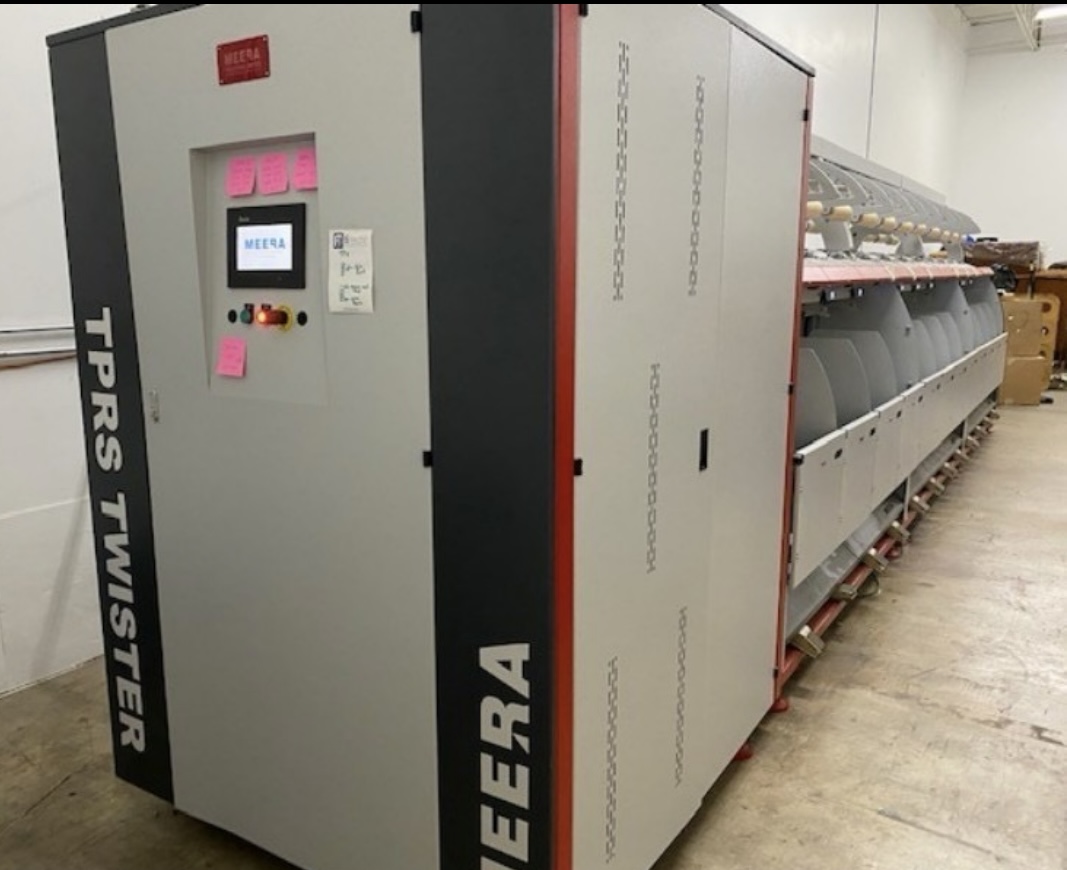

| Description | Model TPRS-25 Twister, 24 positions, with interchangeable buckets to ply-twist (with offsetting S and Z twist) 2 or 3 ends or run a single end. .
Model S-700 Pirn / Cop Winder.with 10 positions.
A versatile one-step S/Z twister, the TPRS-25 handles mid-range deniers (600-6000) and is designed for applications like heavy fishing twines, industrial threads, and high tenacity yarns. It features individual spindle motors for high production and lower power consumption, alongside a modular design that includes Air Threading and individual position start/stop for efficient operation and knotless packages up to 5 kg
Denier Range
600 - 3000 (1200 - 2500 for specific applications).
Applications
Heavy fishing twines (210/9, 210/12, 210/18), bag closing threads (600/2, 840/2, 1000/3), high tenacity threads, cotton twine, footwear threads, leather sewing thread, geotextiles, hose reinforcement, cargo nets. Handles PPMF, PP fibrillated tapes, nylon, polyester multifilament, spun polyester & cotton.
Package Weight
Knotless take-up packages up to 5 Kg for efficient downstream processing.
Drive & Speed
Individual spindle motors for Ply & Cable (S/Z) twist; max speed 4500 RPM. High production with reduced power consumption (up to 6000 denier).
Moderate Package Size
5KG packages vs 3KG (TPRS-19) and 15KG (TPRS-50) for optimal handling
Operational Design
Modular build, optional air threading, individual spindle start/stop, length counting, conveyor handling for bulky packages, inverter drive with HMI, recipe storage (TPM, winding tension, speed, overfeed ratio), yarn break sensors with auto cradle lift & individual spindle stoppage.
Model S-700 Winder
The Servo Controlled Cop Winder (Model S-700) is a PLC system-driven machine with a servo motor, ensuring automatic operation, constant yarn tension, and uniform yarn speed up to 700 m/min. It offers high flexibility, handling various deniers and all types of yarn (e.g., FDY, POY, DTY) and supporting diverse winding methods like wrap, filling, and bottle winding
Driving Technology
Servo motor driven with a PLC system
Max Spindle Speed
300 to 700 meters per minute (m/min.)
Denier Range
30-300
Max Package Weight
The maximum package weight is 1.25 KG.
Applications
Up to 8400 denier maximum capacity
Yarns
For Filament Yarns, Polyester, Polypropylene, Nylon
Automation
Servo Motor Driven PLC System
Includes spare parts & bobbins. |
