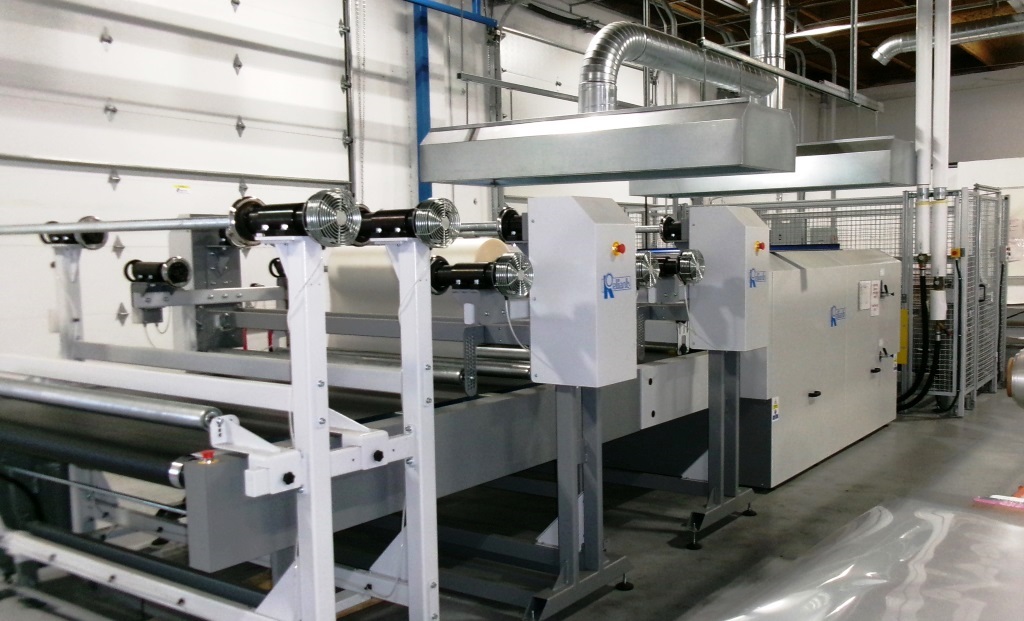

| RELIANT Coolstream 160 TAL Belt Laminator, 2022 yr, 1600mm |
| Item Number | 18452 |
| Quantity | 1 |
| Machine | RELIANT Coolstream 160 TAL Belt Laminator, 2022 yr, 1600mm |
| Description | working width, unwinds/rewinds, sheeter, & chiller. For use with thermoplastic and carbon materials.
Stage 1 ? Powerline 160 PVC Conveyor ? Maximum material width: 1600mm (63") ? Belt length: 2500mm (98.4") ? PVC conveyor belt ? Built in belt tracking ? Steel base frame ? Foot pedal stop start for sheet feed & operator start-up of roll goods ? Integrated speed control with laminator HMI screen.
Stage 2 - Reliant Rolamatic Plus 160 Unwind, Two-position, Horizontal Unwind Position - 1 ? Maximum roll diameter: 330mm (13") Unwind Position - 2 ? Maximum roll diameter: 508mm (20") Unwind Positions - All ? Maximum roll weight: 100kg (220lbs) ? Maximum roll width: 1600mm (63") ? Drop in safety chucks & center shaft bars with square journal ends ? Locking core chucks and support pucks for 76mm (3") ID cores (per position) ? Air bladder and support puck for 150mm (6") ID core (one position) ? Manual side shift edge guidance via hand wheel assembly ? Pneumatic tension control via brake, air regulator and gauge assembly, air on/off switch ? Two idler rollers, adjustable mounting locations.
Stage 3 - Reliant Rolamatic Plus 160 Unwind/Rewind, Three-position, Horizontal Unwind Position - 3 ? Maximum roll diameter: 330mm (13") Unwind Position - 4 ? Maximum roll diameter: 508mm (20") Unwind Positions - All ? Maximum roll weight: 100kg (220lbs) ? Maximum roll width: 1600mm (63") ? Drop in safety chucks & center shaft bars with square journal ends ? Locking core chucks and support pucks for 76mm (3") ID cores (per position) ? Air bladder and support puck for 150mm (6") ID core (one position) ? Manual side shift edge guidance via hand wheel assembly ? Pneumatic tension control via brake, air regulator and gauge assembly, air on/off switch Carrier Rewind - Center Position ? Maximum roll diameter: 280mm (11") ? Maximum roll weight: 100kg (220lbs) ? Maximum roll width: 1600mm (63") ? Drop in safety chucks & center shaft bars with square journal ends ? Locking core chucks and support pucks for 76mm (3") ID cores ? Pneumatic tension control via clutch, air regulator and gauge assembly ? Variable speed control ? manual control ? Clockwise and anti-clockwise rewinding ? manual control ? Three idler rollers, adjustable mounting locations.
Stage 4 - Reliant Rolamatic Plus 160 Unwind/Rewind Two-position, Horizontal Unwind Position 5 ? Maximum roll diameter: 280mm (11") ? Maximum roll weight: 100kg (220lbs) ? Maximum roll width: 1600mm (63") ? Drop in safety chucks & center shaft bars with square journal ends ? Locking core chucks and support pucks for 76mm (3") ID cores ? Manual side shift edge guidance via hand wheel assembly ? Pneumatic tension control via brake, air regulator and gauge assembly, air on/off switch Carrier Rewind Position ? Maximum roll diameter: 280mm (11") ? Maximum roll weight: 100kg (220lbs) ? Maximum roll width: 1600mm (63") ? Drop in safety chucks & center shaft bars with square journal ends ? Locking core chucks and support pucks for 76mm (3") ID cores ? Pneumatic tension control via clutch, air regulator and gauge assembly ? Variable speed control ? manual control ? Clockwise and anti-clockwise rewinding ? manual control ? Three idler rollers, adjustable mounting locations.
Stage 5 - Reliant Coolstream TAL160 GOS (63") Laminator: ? 1620mm belt width ? 1900mm long heating tunnel o 22 heater modules (11-upper/11-lower) o Six (6) zones of temperature control in machine direction (3-upper/3-lower) o Single (1) zone across the width o Total heating power: 4.4 kW per heating module, total heating ? 96.8 kW ? 1000mm integrated cooling tunnel o Ten (10) cooling modules (5-upper/5-lower) (Chiller quoted separately) ? Floating upper modules ensure constant contact pressure for optimum heating/cooling ? Tunnel height adjustment from 0 to 50mm (2.0") o Manual hand wheel tunnel adjustment with digital readout in 0.2mm increments ? Synchronized driven pressure rollers are 152mm (6.0") diameter ? Steel pressure rollers with 3mm precision ground high temperature silicone rubber covers ? Gap Opening System (GOS) mechanical gap adjustment of upper pressure roller o 5 settings for GOS at 0, 1, 2, 3mm & roller lift position ? Pneumatic upper pressure roller control (0-8 bar) via regulator on control panel ? Two (2)-ply, PTFE conveyor belts with ?mark free? joint splice (smooth finish) ? 700mm (27.5") inlet extension of lower conveyor belt ? 800mm (31.5") exit mesh conveyor belt ? Independent PID micro-processor temperature controls of all zones ? Split side panel system for fast & easy belt replacement ? Felt wiper cleaning bars located on top & bottom belts ? Reliant Synchro-Track belt alignment system with linear actuators ? Speed range upgraded to 20:1 ? Running speed range: 0.5-10.0 meters/minute ? Temperature Range: 240°C (464°F) ? OMRON PLC control system o HMI Touch screen color display o Operating program memory function o Reporting, maintenance, and history functions o Visual warning system ? Electrical: 480 volts/3phase/60Hz, approximate amps ? TBD.
Stage 6 - Reliant True Sheet 1600 Traveling, High Speed Sheeter ? Material: Laminated thermoplastic/carbon fabric ? Web Thickness: up to 0.250" (depending on material/product density) ? Web width: 1600 mm wide ? Minimum sheet size: 762mm (30") ? Maximum sheet size: 1270mm (50") or longer ? Sheet cut tolerance: ± 12.7mm (± 1/2") ? Line Speed: 1-10 m/minute, sheeting speed subject to material cut length ? Traveling Cutter: Cross cutter travels in the web direction on a pair of belted linear actuators with driven motor for smooth precise motion. The Cutter has a stainless-steel base with low friction bearings to support the material as it travels. A guided slot base plate allows the cross cut blade to pass through as it traverses the web. Cutter speed is matched to web speed with lay-on dual wheel encoder. ? Cross Cutter: 150mm (6?) diameter double bevel cross cut blade. AC motor with inverters to adjust blade speed. ? Cross Cutter Drive: Belt drive for high speed, accurate sheets. Heavy duty linear bearings support the cross cut blade assembly. ? Material Clamp: A material clamp to secure the web during the cut. Pneumatic controls to raise and lower the clamp. Precision regulator allows adjustment of the clamp pressure. Clamp base has row of captured ball bearings for uncut material to glide on during traveling cutter retract. ? Guarding: Fully guarded with hinged access doors as needed. All doors are interlocked for safety. ? Exit Conveyor: 2.5-meter conveyor. PVC clipper belt with adjustable speed AC motor. ? Controls On-board stand-alone PLC controls, HMI screen, line speed input from laminator, pneumatic air regulator.
Reliant 15-Ton Air Cooled Portable Chiller: ? Air condensed refrigeration circuit ? Environmentally friendly R410A refrigerant ? Microprocessor controller provides diagnostics and precise temperature control ? Digital Scroll compressor ? Energy efficient capacity modulation down to 20% load ? Stainless steel brazed plate evaporator ? Non-ferrous wetted surfaces ? Automatic low flow bypass ? Removable inlet air filter, easily cleaned. Protects condenser coils assuring maximum efficiency ? Mounted on casters ? Safety function - laminator heat cannot switch on without running signal from chiller ? 2? FPT process supply & return connections ? Dimensions: L (66") x W (59") x H (59") ? Electrical service: 460-480/3/60 ? Full load amperage Approx. 47A.
Spares Package ? Qty 1 Linear actuator belt tracking ? Qty 2 Heating elements ? Qty 1 Thermocouple ? Qty 1 Bottom belt, 2 ply mark-free, TAL160 ? Qty 1 Top belt, 2 ply mark-free, TAL160 ? Qty 1 Contactor ? Qty 4 Felt wipers ? Qty 1 R300B Belt cleaner per gallon. |
| Quote |   |
