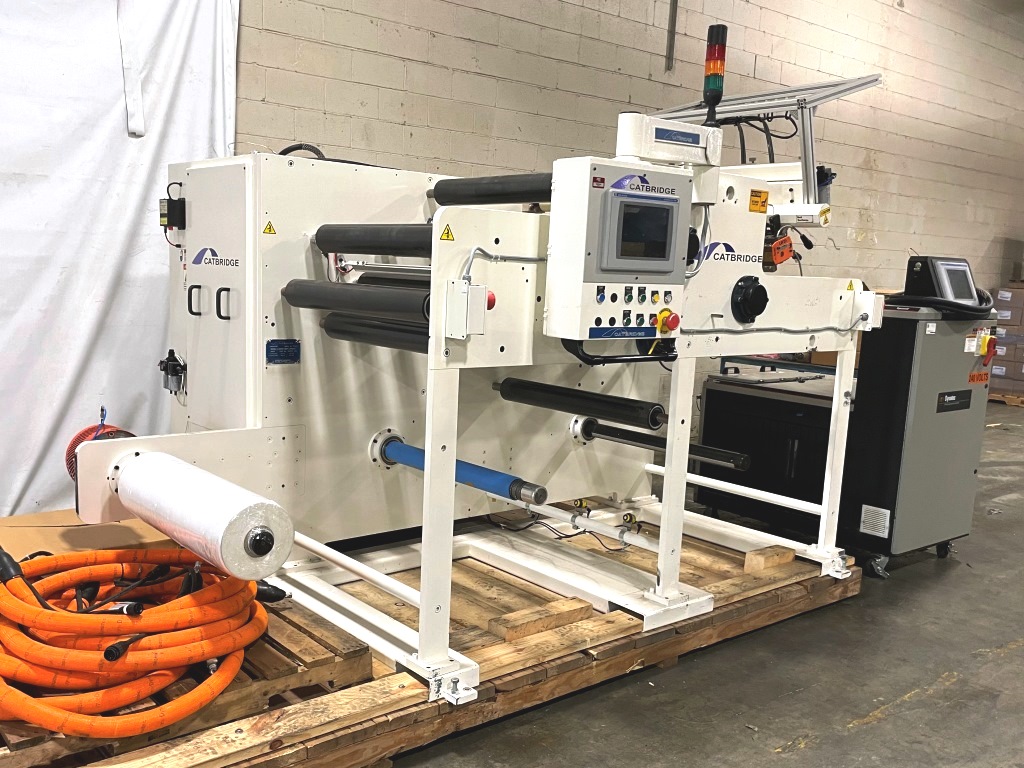

| CATBRIDGE 30" Hot Melt Spray Laminating Line, 2015 yr. |
| Item Number | 18408 |
| Quantity | 1 |
| Machine | CATBRIDGE 30" Hot Melt Spray Laminating Line, 2015 yr. |
| Description | CATBRIDGE Laminator, consisting of:
Unwind 1: cantilevered, 36" max diameter with 3"ID Convertech Air Shafts with 400 lb capacity, Montalvo disc brake.
DFE Load Cell Tension Roll.
Bowed Roll .
Unwind 2: cantilevered, 36" max diameter with 3"ID Convertech Air Shafts with 400 lb capacity, Montalvo disc brake.
DFE Load Cell Tension Roll.
Bowed roll before hot melt system.
TAKK INDUSTRIES Static Eliminator, Model 400-AC-036T. Power supply Model 2000S, 115v input & 6000v output.
(2) Rolls with Dover Flexo Electronics Tension Transducers, Model C1L, Load 100.
ITW Dynatec UFD Fiberized Spray Technology Hot Melt Applicator System, 32" spray head has 32 pumps/nozzles (?), 240v 450 watts 1.9 amps, Air Preheater 240v 400 watts 1.7 amps, hot air booster tank, horizontal & vertical spray head adjustment assembly.
Hot melt nip roll with 6" diameter rubber covered nip roll.
DFE Load Cell Tension Roll.
Rewind: cantilevered, 36" max diameter with 3" differential ball chucks with 400 lb capacity.
Banner Ultrasonic Diameter Detectors,
PanelView HMI for line control, drive panel mounted on rear side frame with two (2) 3HP Allen Bradley PowerFlex drives & Allen Bradly PLC. 480/3/60, 80 amps.
ITW Dynatec M70 Dynamelt Hot Melt Adhesive Supply Unit, with 4 melt pumps, Model M70S HT AB G ZGS, 150 lb high flow hopper, PanelView HMI, 4 Allen Bradley drives, Allen Bradley PLC, hot melt adhesive delivery hose. 240/3/60, 100 amps.
Includes operating & parts manual along with assorted spare parts. Reported used about 6 months and appears in excellent condition. |
