| STANFORD 142LT Selvage Rewinder (Doctor Machine), 2017 yr, |
| Item Number | 18065 |
| Quantity | 1 |

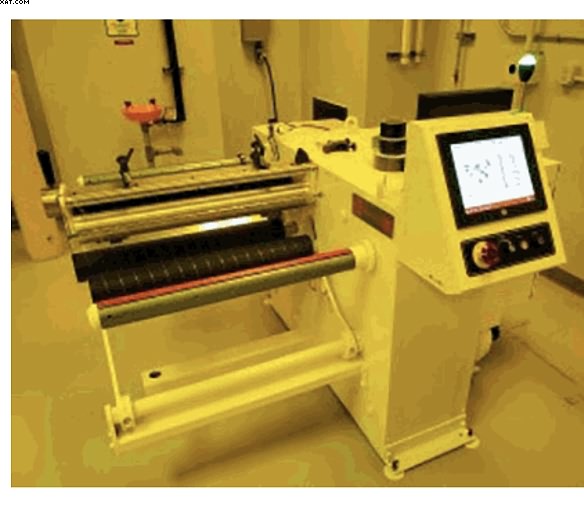

| Machine | STANFORD 142LT Selvage Rewinder (Doctor Machine), 2017 yr, |
| Description | 6" to 30" web width, 30" maximum diameter single position unwind (3" air shaft, constant tension control by brake and dancer feedback, controls for start/stop/speed/shaft/brake, automatic web guide with ultrasonic edge detection, 400 lb. max roll weight), razor in grooved roll trimming (1/16" grooves and flats, three (3) razor holders, top knife shaft designed for disengagement), 24" maximum diameter rewind (3" air shaft, air-operated rubber-coated rider roll, 200 lb. max roll weight).
Speed 305 MPM (1000 FPM).
Control Techniques AC drive, HMI. PLI range: 0.25 - 1.0 ; 460V/3Ph/60 Hz/30 Amps.
Machine was installed and kept in a cleanrooom the entire time and has very low hours - reportedly around 100 hours of use. |
