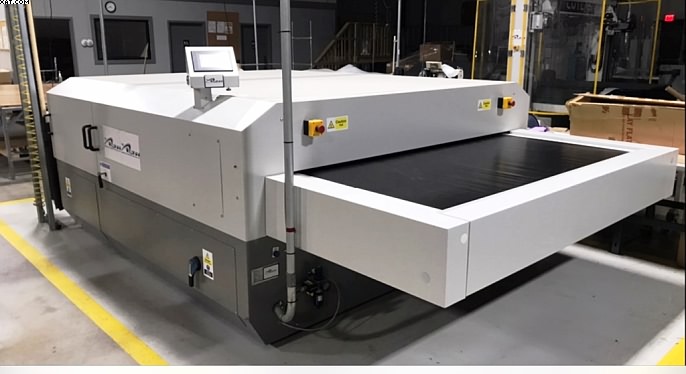

RELIANT Coolstream-180 (72") HC Laminating Machine, 2014 yr,
Item Number17899
Quantity1
MachineRELIANT Coolstream-180 (72") HC Laminating Machine, 2014 yr,
Description 1800mm belt width capability Continuous PTFE conveyor processing 1700mm long heat tunnel Retained heat, input conveyor Separate 4 zone heating in the tunnel length Max heat capacity 200 Celsius 72 kw heating capacity (18 modules each rated to 4 kw) 16 kw of pre-heat (4 modules each rated to 4 kw) Independent PID micro-processing temperature control of all zones Constant BSZ belt temperature monitoring system 1000mm internal enhanced cooling with 12 modules (closed loop chiller not included) Continuous pressure eliminates movement between substrates Constant belt speed controlled using AC inverter motor Speed range 2-18 meters per minute Unique "Synchro-Track" belt alignment system for longer, trouble free belt life Cooling off-load conveyor Suitable for panels or reel to reel application Super cool, energy saving insulation PLC controls via colour touchscreen for all line functions Standard PTFE scarf joined belts Reported only used for samples before project canceled. Less than 40 hrs run time. CF SERIES 10 TON AIR COOLED DIGITAL SCROLL PORTABLE CHILLER CFD-10A 10 Ton Air Cooled Portable Chiller Voltage: 460/3/60 Features: - Air condensed refrigeration circuit - Environmentally friendly R410A refrigerant - 9.75 Ton capacity @ 50ºF LWT & 95ºF ambient - Copeland Digital Scroll compressor - Energy efficient capacity modulation down to 20% load - Stainless steel brazed plate evaporator - High efficiency condenser with copper tubes & aluminum fins - 2 HP pump (24 GPM @ 47 PSI) - 25 Gallon insulated non-ferrous reservoir - Non ferrous wetted surfaces - Automatic low flow bypass
RELIANT Coolstream-180 (72") HC Laminating Machine, 2014 yr,
RELIANT Coolstream-180 (72") HC Laminating Machine, 2014 yr, RELIANT Coolstream-180 (72") HC Laminating Machine, 2014 yr, RELIANT Coolstream-180 (72") HC Laminating Machine, 2014 yr,
