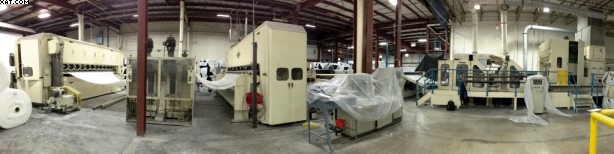

SPINNBAU AUTOMATEX Needle Punch Line, ~5.5M, consisting of: |
Item Number | 17106 |
Quantity | 1 |
Machine | SPINNBAU AUTOMATEX Needle Punch Line, ~5.5M, consisting of: |
Description | Blend Line, 60" wide, 4 hoppers with 12? heavy duty extended aprons & new electronic weighing system (2016). All machines completely reconditioned in 2016.
OMMI Stack Reserve, Automatic Combo 332, 2000 yr.
SPINNBAU Card, 2.5M, double doffer, 1995 yr, reported ~1500-1800 lbs/hr capacity depending upon product.
AUTOMATEX FA/3000 TC Crosslapper, 1997 yr, AC drives, 2500/5500mm (236"), ~ 90-100 meters/per minute.
Batt Drafter, 240" wide, 12 rolls.
AUTOMATEX PR-100/T Pre-Needler, 60mm stroke, 6000mm, 84,000 needles, 1997 yr.
Drafter, 5 rolls.
AUTOMATEX AG 154/TB Needle Loom, quad punch, 50mm stroke, 6000mm, 168,000 needes, 1997 yr.
Four Roll Stretch.
Metal Detector.
ENTEX Tenter with vertical IR heat banks, 1997 yr.
PERKINS 4 Roll Calender, 2 steel oil heated and 2 cotton rolls, 230" wide, with hot oil heating unit.
Ehhardt+Leimer Guider Model SE 11062, 2013 yr.
ENTEC Winder, 1997 yr, 250" wide.
Both looms have interchangeable boards, six boards across x 2 - 7000 needles per meter.
Finished width reported of 210" but could go wider. Line ran primarily geotextile & bedding products from 4.5 to 10 oz/yd (150g/m2 to 340 g/m2). However, it was reported to have run PP and PE fibers from as light as 100 g/m2 to as heavy as 560 g/m2. |
