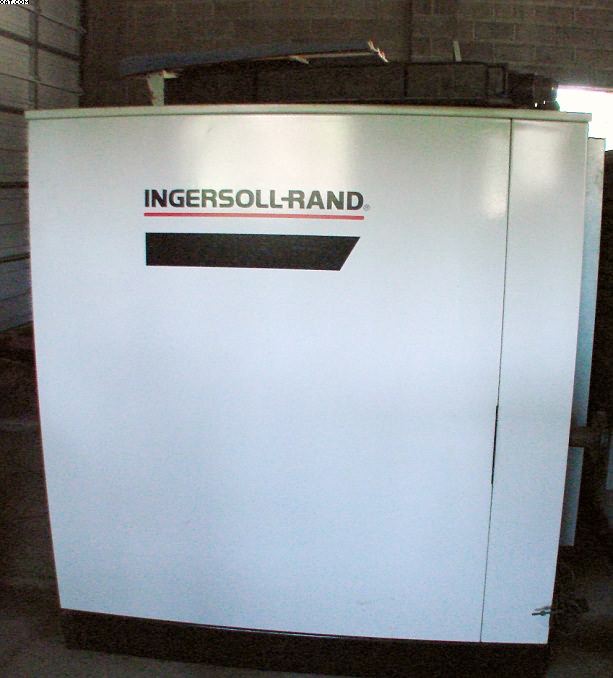

| INGERSOLL RAND Model SSR-EP100 Air Compressors, 100 hp. |
| Item Number | 13251 |
| Quantity | 2 |
| Machine | INGERSOLL RAND Model SSR-EP100 Air Compressors, 100 hp. |
| Description | Capacity 446 CFM, Rated Operating Pressure - 125 psig.
Max Discharge Pressure - 128 psig.
Max Modulate Pressure - 128 psig.
Nominal Drive Motor - 100 HP.
Nominal Fan Motor - 50 HP.
Total Package Amps - 322.
Volts - 200, Phase/Hertz - 3/60.
Control Voltage - 120.
Contractor Amp Rating - 250.
Assembly Amp Rating - 433.
Locked Rotor Amp Rating Assembly - 3240.
OAD: 67" high, 66" X 61" .
Radiator removed from one unit for repair but never reinstalled.
Compressors have been out of service since 12/2009.
INGERSOLL RAND Model DXR 1000 FGE4 Air Dryer,
Refrigerated Compressed Air Dryer 1998 YOC.
Max inlet Air Pressure - 250 psi.
Max inlet Air Temp - 130F.
Min/Max Ambient Temp - 40/120F.
Factory Refrigerant Charge - 18 lb O or R-22.
Low Side -144, High Side - 278.
Compressor - 5 HP 135 LRA, 21.5 RLA.
Fan Rating - 1/2 HP 2.8 RLA.
Supply Fuse Size - Type 50 A UL-RK5.
Unit RLA - 24.75 Volts 208/230 60 HZ 3PH min. Circuit ampacity - 30.13.
OAD: (73" high, 36" wide, 48" deep).
MANCHESTER TANK Air Tank,
Board # - 545375, Nat'l Certified by Manchester Tank, TX.
W--MAWP165 PSI @ 516 F.
RT--4 MDMT-20FG 165 PSI.
OAT # 3135 YR. 1998.
CRN--SH.247 Gallon - 1060.
HD.225 2:1 SE
OAD: 13' high, 12' diameter.
Owner would like to sell as a package but might consider selling piecemeal. |
 |
