BARMAG Winder, type EKS6D, 156 positions, 94mm x 250mm.
Item Number11275
Quantity1
MachineBARMAG Winder, type EKS6D, 156 positions, 94mm x 250mm.

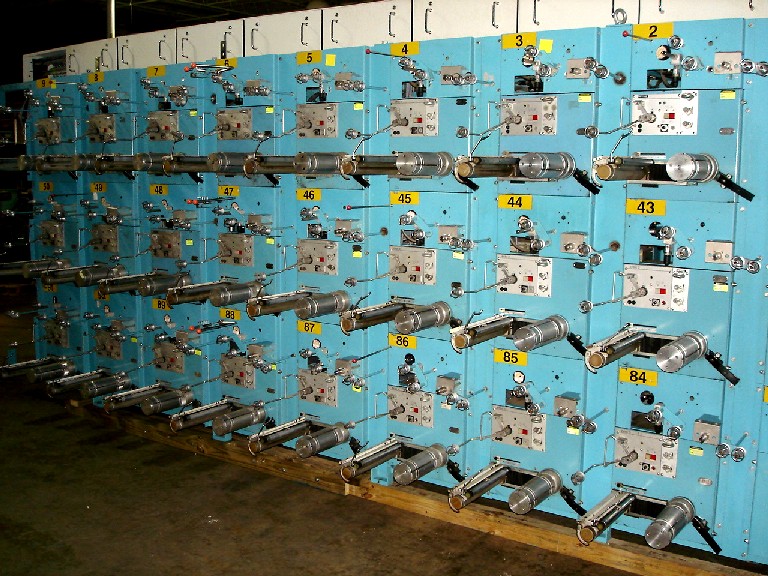

Description Low speed, double sided, triple deck, plug in type winding units, aspirators, tensions, control panel. Winders appear in very good condition. Electrical Supply: 480/278v Control Supply: 110v, 60 hz. Last used in tire cord operation. The EKS6 precision winder is suited for winding continuously fed yarn ends with controlled yarn tension. The take-up speed adapts automatically to the speed of the fed yarn. The winding assembly units include the winder housing, traverse mechanism, quick release chuck, drive, electronic unit with compensator arm and control panel, and change gears. These winders have the capability for air jet texturizing but jets are not included. Machine is set up with (2) end sections (54+48 pos) and (1) intermediate section (42 pos) plus 12 positions to connect the sections giving (156) total positions. There are ~35-40 spare heads but will have to be confirmed. Controller reported to have capacity to run 248 positions.
QuoteAdd To QuoteHelp
BARMAG Winder, type EKS6D, 156 positions, 94mm x 250mm.
BARMAG Winder, type EKS6D, 156 positions, 94mm x 250mm.  BARMAG Winder, type EKS6D, 156 positions, 94mm x 250mm.  BARMAG Winder, type EKS6D, 156 positions, 94mm x 250mm.  BARMAG Winder, type EKS6D, 156 positions, 94mm x 250mm.  BARMAG Winder, type EKS6D, 156 positions, 94mm x 250mm.  BARMAG Winder, type EKS6D, 156 positions, 94mm x 250mm.
 BARMAG Winder, type EKS6D, 156 positions, 94mm x 250mm.  BARMAG Winder, type EKS6D, 156 positions, 94mm x 250mm.  BARMAG Winder, type EKS6D, 156 positions, 94mm x 250mm.
