SPINNBAU 3 Meter Card, 1985 yr,
Item Number	9997
Quantity	1

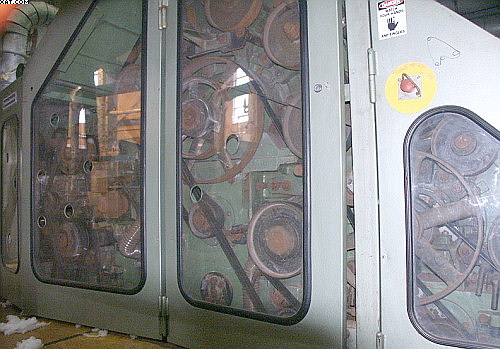

Machine	SPINNBAU 3 Meter Card, 1985 yr,
Description	A "Krempel" type card Type "AP3547 - 19/4 Card System 3500. It is set-up with a double doffer take-off system each followed by a set of two condensing rolls, with the 2nd condensing roll being doffed with two additional rollers. No feed is included. The machine was put into climate controlled storage and is currently disassembled. The roller gaps and wire types were set-up to run mainly two recipes. 100% 1.7 dtex PET (PES) and 35% 1.7dtex PA (nylon), 45% 3.3dtex PA (nylon), 20% PET (PES) 3.3dtex. Fiber length 38mm. The card wire is reported in fair condition. Stopped since 2003. Schematic available for roll position and recommended gap setting for small denier fibers.
Quote

Please feel free to Contact Us with any
Questions or Equipment Inquiries. Thank You!
