STP IMPIANTI Continuous Filament Extrusion Machine,
Item Number	13845
Quantity	1

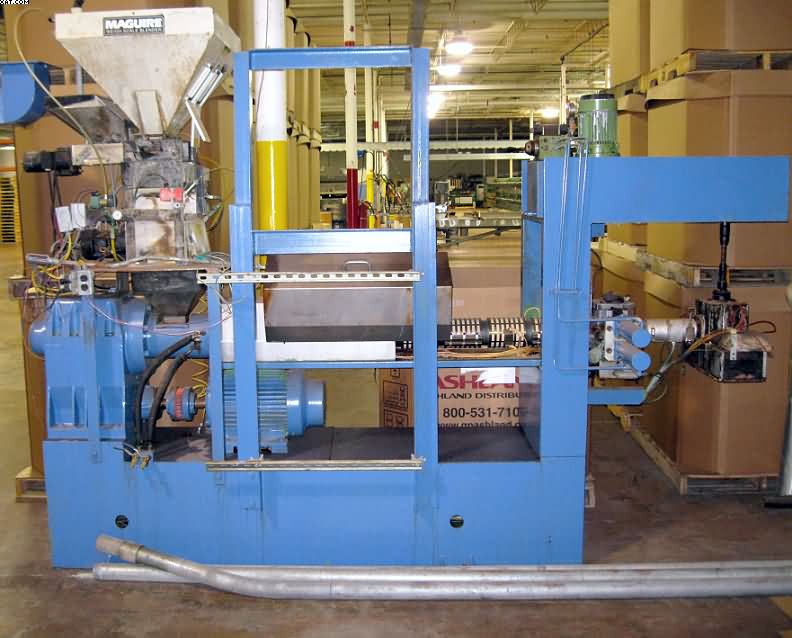

Machine	STP IMPIANTI Continuous Filament Extrusion Machine,
Description	- Model SP-4, 1990 year, 4 thread lines. - Extruder, 2.5" diameter, 28:1 L/D, water cooled feed throat, ~25 hp 480v motor, screen changer. - Metering pump feeding 4 position spin beam. - Quench tube (screen missing). - Spin finish tank & pump (currently no applicators). -3 heated roll draw zones. -Sahm Type 2002 R Autodoff Take Up Winder, 1998 yr, 4 cop. Chuck is ~585mm x 74mm (23" x 2-7/8"). Tubes are ~74mm x 150mm (2-7/8" x 5-7/8"). Winders are missing some parts and would require refurbishing. Measurements: - Extruder - 11' 6" L. x 2' 6" W. x 8' 6" T. Control panel and godet - 15' 3" L. x 5' W. x 91" T. Winder - 7' L. x 2' W. x 54" T. Quench Cab - 5' 10" L. x 26" W. x 28 1/2" T. Plus ladder assembly.
