| NONWOVEN NEEDLE PUNCH PLANT Consisting of: |
| Item Number | 13447 |
| Quantity | 1 |
| Machine | NONWOVEN NEEDLE PUNCH PLANT Consisting of: |
| Description | Complete plant for the manufacture of nonwoven needle punched fabrics.
NEEDLE PUNCH LINE # 1/2:
(1) Whitin 60" Fiber Feed Hoppers, Model 47DHP08, Year 1960±, manual feed, spiked apron feed, beater bar, chain driven, weigh pan feed, 36" extended apron.
(1) Whitin Tandem Card, 60" Wide, (8) workers/strippers, single doffer, 40 HP motor belt driven with 60" transfer rubber belt.
(1) Unknown Fiber Cross Lapper, Year 1980±, 120" wide x 120" long, with floor apron, 110" wide x 40? long.
(1) Dilo 2.5 Meter Down Stroke Needle Punch Loom, Model ODII/25, Year 1978,
(1) Nonwoven 130" Fabric Edge Trimmer, with (2) circular pneumatic cutting knives, 12" diameter, steel press roll, 7" diameter x 130" wide, chain driven
(1) Nonwoven 130" Two Roll Batcher, Model N/A, Year N/A, Serial Number N/A, with
(2) wooden horizontal rolls, 14" diameter x 130" wide, 2 HP motor, chain driven. All associated motor control drive panels, system control panels and electrical wiring.
NEEDLE PUNCH LINE # 3/4:
(1) Harwood Bramwell 60" Fiber Feed Hopper, Year 1960±, manual feed, spiked apron feed, beater bar, chain driven, chute feed, 36" extended apron.
(1) Whitin Tandem Card, 60" wide, (8) workers/stripers, single doffer, 40 HP motor belt driven.
(1) Unknown Cross Lapper, YOC 1980±, 79" W x 36" L entry apron, 79" W x 210" L cross lapper.
(1) Floor apron 160" Wx 220" L with fiber batt compression section, steel/steel rolls, 7" diameter rolls.
(1) Hunter 4.2 Meter Down Stroke Needle Punch Loom, Model NL12/42, YOC 1969.
(1) Nonwoven 170" Fabric Edge Trimmer, (3) circular pneumatic cutting knives, 12" diameter, steel press roll, 7" diameter x 180" wide, chain driven.
(1) Nonwoven 170" Two Roll Batcher, (2) wooden horizontal rolls, 14" diameter x 180" wide, 2 HP motor, chain driven.
All associated motor control drive panels, system control panels and electrical wiring.
NEEDLE PUNCH LINE # 6:
Working width 192" (4.8M), production speed of 30 yards per minute.
(1) Harwood Bramwell 60" Fiber Feed Hoppers, YOC - 1960±,
manual feed with 6? extended apron feed, spiked apron feed, beater bar, chain driven.
(1) Single Cylinder 60" Opener, YOC - 1970±, 24" diameter with 6" diameter spiked feed roll, 40 HP motor, with blower fan and 10 hp motor.
(1) Harwood Bramwell 84" Feed Hoppers YOC -1960±, enclosed fiber reserve 180" long with floor apron feed, spiked apron feed, beater bar, chain driven, 2 HP motor, with Buffalo Forge 36-04 blower fan and 10 HP motor.
(1) Main Picker Feed Reserve & Chute, 102" W x 120" long fiber reserve, floor apron feed, 96" wide spiked apron, chute feed.
(1) Single Cylinder Card, 96" wide, (9) workers/stripers, double doffer, 60 HP motor belt driven.
(1) Asselin Cross Lapper, Model 2711-360N-455, YOC - 1990±, 108" wide x 218" long, control panel, with floor transfer apron, 218" wide x 13? long from cross lapper, compression section; 7" diameter steel/steel pneumatic, incline transfer apron, 218" wide x 64" long to needle punch machine.
(1) Fehrer 4.8 Meter Down Stroke Needle Punch Loom, Model NL9/S, Year 1984, with compress batt feed.

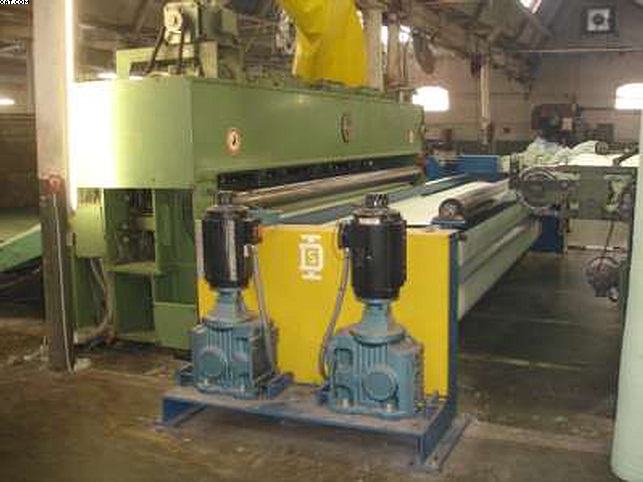

(1) Diversified Systems Inc. 4 Roll Stretch (Drafting) Section,YOC - 2004, 22? wide x 14" diameter (2) 10 HP AC motors with gear reducer boxes and control panel.
(1) Kenyon Open Pup Pin Tenter Frame, Model N/A, Year 1960±, (rebuilt) 16? Long, adjustable width 192", over/under chain, 10" diameter turn around,
(3) Infrared heaters with SS ventilation hood, 2 HP motor chain driven, mounted on steel frame.
(1) Nonwoven 192" Fabric Slitter, with (6) circular pneumatic cutting knives, 12" diameter, steel press roll 7" diameter x 200" wide, chain driven.
(1) Nonwoven 192" Two Roll Batcher with (2) steel horizontal rolls, 12" diameter x 200" wide, 5" diameter pneumatic pressure top press roll, core insert, 2 HP motor, chain driven.
(1) Waste Reel Take Up, 36" wide, ¾ HP motor, Penta-Drive DC motor speed controller, chain driven.
(1) Two Roll Wrapper, with (2) steel horizontal rolls, 11" diameter x 170" wide, electric motor, chain driven.
(1) Toledo Dial Face Scale, Model 8823-FC, 1,000 lb. capacity, 1 lb. graduations, 30" x 30" platform, portable unit. All motor control drive panels, system control panels and electrical wiring.
NEEDLE PUNCH LINE # 7:
Nonwoven 160" Needle Bond Line, production speed of 30 yards per minute, consisting of:
(1) Bramwell 54" Feed Hoppers, YOC - 1960±, manual feed with 10? extended apron feed, spiked apron feed, 54" floor apron, chain driven.
(1) Sargent Single Cylinder 48" Opener, Model 401, YOC -1970±, 32" diameter with 20 HP motor, with blower fan and 10 HP motor.
(1) Bramwell 90" Pre-Feed/Fiber Reserve, YOC -1960±, enclosed fiber reserve 96" long with floor apron feed, spiked apron feed, chain driven.
(1) Bramwell 84" Main Picker Feed YOC -1960±, enclosed fiber reserve 90" wide x 48" long with floor apron feed, spiked apron, chute feed, chain driven.
(1) Davis & Furber Tandem Card, 84" wide, (9) workers/stripers, single doffer, 40 HP motor belt driven.
(1) Asselin Cross Lapper, Model 350, YOC - 1990±, 120" wide x 218" long, control panel, with floor transfer apron, 218" wide x 13? long.
(1) Fehrer 4.4 Meter Tacker Needle Punch Loom, Model NL28/39, YOC - 1971, with compressive batt feed.
(1) Fehrer 4.4 Meter Down Stroke Double Needle Punch Loom, Model NL21/40, YOC - 1971.
(1) Kenyon Open Pup Pin Tenter Frame, YOC -1960±, (rebuilt) 16? Long, adjustable width 168", over/under chain, 10" diameter turn around, (3) Infrared heaters with SS ventilation hood, 2 HP motor, chain driven, mounted on steel frame.
(1) Nonwoven 160" Fabric Slitter with (6) circular pneumatic cutting knives, 6" diameter, steel press roll 7" diameter x 168" wide, chain driven.
(1) Nonwoven 160" Two Roll Batcher, with (2) steel horizontal rolls, 14" diameter x 168" wide, 5" diameter pneumatic pressure top press roll, core insert, 2 HP motor, chain driven.
(1) Waste Reel Take Up, 36" wide, ¾ HP motor, Penta-Drive DC motor speed controller, chain driven.
(1) Two Roll Wrapper, with (2) steel horizontal rolls, 11" diameter x 160" wide, electric motor, chain driven.
All motor control drive panels, system control panels and electrical wiring.
NEEDLE PUNCH LINE # 8:
(1) Bramwell 54" Feed Hoppers, Model 3844, YOC -1960±, manual feed with 8? extended apron feed, spiked apron feed, chain driven, 48" long x 54" wide exit apron.
(1) Single Cylinder 60" Opener, YOC - 1970±, 24" diameter with 30 HP motor, with blower fan and 10 HP motor.
(1) Enclosed 54" Feed Hopper YOC -1960±, spiked apron feed, chain driven, blower fan and 5 HP motor.
(1) 64" Pre-Feed/Fiber Reserve, YOC - 1960±, enclosed fiber reserve, 48" long floor apron, spiked apron feed, chain driven.
(1) 72" Main Picker Feed, YOC - 1960±, enclosed fiber reserve, 60" long floor apron, spiked apron, chute feed, chain driven.
(1) Davis & Furber Tandem Card, 85" wide, first cylinder 24" diameter, second cylinder 30" diameter, with workers/stripers, single doffer, 40 HP motor, belt driven.
(1) Asselin Cross Lapper, Model 1340-380-254, YOC - 1980±, 120" wide x 218" long, control panel, with floor transfer apron, 218" wide x 13? long, incline transfer apron, 218" wide x 64"long.
(1) Fehrer 5.3 Meter Down Stroke Needle Punch Loom, Model NL9/S, YOC - 1996, with compressive batt feed.
(1) Diversified Systems Inc. 4 Roll Stretch (Drafting) Section, YOC - 2004, 20? wide x 14" diameter (2) 10 HP AC motors with gear reducer boxes and control panel.
(1) Kenyon Open Pup Pin Tenter Frame, YOC - 1960±, (rebuilt) 16? Long, adjustable width 192", over/under chain, 10" diameter turn around, (3) Infrared heaters with SS ventilation hood, 2 HP motor, chain driven, mounted on steel frame.
(1) Nonwoven 192" Fabric Slitter, with (6) circular pneumatic cutting knives, 6" diameter, steel press roll 7" diameter x 200"? wide, chain driven.
(1) Nonwoven 192" Two Roll Batcher, with (2) steel horizontal rolls, 14" diameter x 200" wide, 5" diameter pneumatic pressure top press roll, core insert, 2 HP motor, chain driven.
(1) Waste Reel Take Up, 36" wide, ¾ HP motor, Penta-Drive DC motor speed controller, chain driven.
(1) Two Roll Wrapper, with (2) steel horizontal rolls, 11" diameter x 160" wide, electric motor, chain driven.
(1) Toledo Dial Face Scale, Model 2181, 800 lb. capacity, ½ lb. graduations, 20" x 30" platform, portable unit. All motor control drive panels, system control panels and electrical wiring.
NEEDLE PUNCH LINE # 9:
(1) Lummus 39" Feed Hopper, YOC -1960±, manual feed with 9? extended apron feed, spiked apron feed, beater bar, chain driven, with blower fan and 5 HP motor.
(1) Davis & Furber Picker Feed Reserve & Chute, YOC - 1960±, overhead condenser box, 84" wide x 120" long x 9? high reserve, floor apron feed, spiked apron, chute feed.
(1) Davis & Furber Tandem Card, 96" wide, (9) workers/stripers, single doffer, 60 HP motor belt driven.
(1) Asselin Cross Lapper, Model 06-360-114, YOC -1990±, 114" wide x 218" long, control panel, with floor transfer apron, 218" wide x 10? long.
(2) Incline transfer aprons, 218" wide x 32" & 58" long.
(1) Fehrer 4.4 Meter Down Stroke Needle Punch Loom, Model NL9/S, YOC - 1996, with compressive batt feed.
(1) Four Roll Stretch (Drafting) Section, YOC ? 2004, 22? long rolls x 13" diameter, (2) 5 HP DC motors with gear reducer boxes and control panel.
(1) Kenyon Open Pup Pin Tenter Frame YOC - 1960±, (rebuilt) 16? Long, adjustable width 192", over/under chain, 10" diameter turn around, (3) Iinfrared heaters with SS ventilation hood, 2 HP motor, chain driven, mounted on steel frame.
(1) Nonwoven 192" Fabric Slitter, with (4) circular pneumatic cutting knives, 6" diameter, steel press roll 7" diameter x 200" wide, chain driven.
(1) Nonwoven 192" Two Roll Batcher, with (2) steel horizontal rolls, 14" diameter x 200" wide, 5" diameter pneumatic pressure top press roll, core insert, 2 HP motor, chain driven.
(1) Waste Reel Take Up, 36" wide, ¾ HP motor, Penta-Drive DC motor speed controller, chain driven.
(1) Two Roll Wrapper, with (2) steel horizontal rolls, 11" diameter x 160" wide, electric motor, chain driven.
(1) Toledo Dial Face Scale, Model 31.1821-FR, 400 lb. capacity, ¼ lb. graduations, 22" x 30" platform, portable unit. All motor control drive panels, system control panels and electrical wiring.
HOT ROLL CALENDER, 18" diameter x 200" wide single roll, oil heated calendar roll, 12" diameter x 200" top press roll, steel frame housing. Comes with with Chromalox hot oil boiler unit (electric fluid heat transfer system). Model PFV650/80, 80 kW motor. Both rolls heated. Variable speed control, reverse. 50 gal. expansion tank. Stop motion safety feature. Can be inspected running.
ADDITIONAL EQUIPMENT INCLUDES:
(1) Gessner 64" Fabric Polisher.
(2) Opening Lines.
(1) Recycling Line.
(2) 25 hp Air Compressors.
(3) Boilers, 30/150/150 hp.
Assorted lab equipment, materials handling, and office furniture.
Assorted lab equipment |
