AMP PISANI Baloney Slitter, 80"
Item Number	12190
Quantity	1

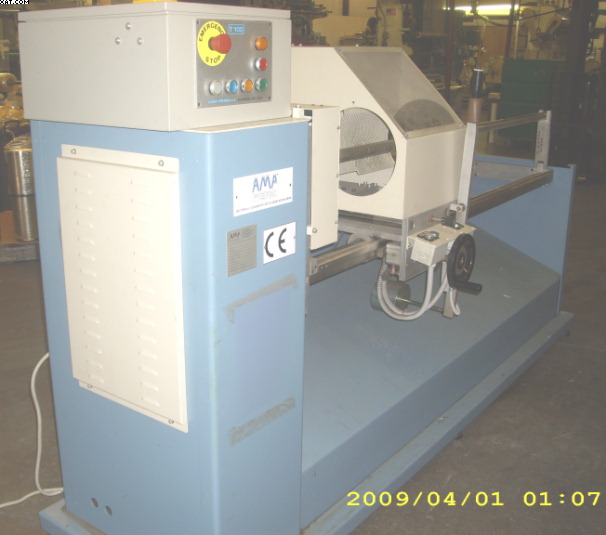

Machine	AMP PISANI Baloney Slitter, 80"
Description	1996 YOC. This Machine was used to Cut down fabric rolls and other materials. Highly safe for the operator. The blade is totally protected by a guard. Manual cut with positioning of the blade carriage with a pneumatic cylinder. The operator pushes a button and the blade carriage indexes to the preset cutting width. Self centering mechanic chuck with grippers to lock the roll on the cardboard and on the external diameter of the roll. A roll slitter uses a single, large circular blade to cut all the way through a roll of material, which is typically on a 1.5" paper or plastic core. As the blade moves against the roll of material, which is spinning on the mandrel (shaft), the blade cuts through the material and core in just a few seconds. Compared to rewind slitters, roll slitters make single cuts very fast, are easy to set up, quick to change rolls. - Volts 220 3 Phase Power HZ 60 KW 3 - Compressed Air 6 Bar -Compressed Air Consumption 35L T/H - Blade accuracy of positioning ą0.3 mm - 12" diameter blade - was cutting rolls 40-120 Lbs but could go more. This machine is in perfect working condition and looks great. Comes with manual. Overall Dimensions 5 ft height x 9 ft length x 3 ft wide Approx 1200 lbs

Please feel free to Contact Us with any
Questions or Equipment Inquiries. Thank You!
