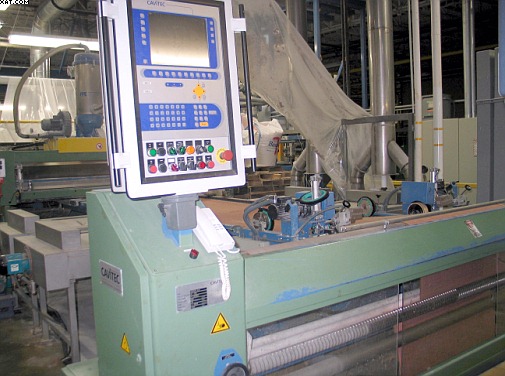

| CAVITEC Powder Coating Machine, 2002 yr, 3 meter, consisting of: |
| Item Number | 10938 |
| Quantity | 1 |
| Machine | CAVITEC Powder Coating Machine, 2002 yr, 3 meter, consisting of: |
| Description | Yale 1-Ton Electric Hoist.
Metal Let-Off Table, 120" wide x 190" long.
2-Roll Unwinding Cradle, 130" wide.
Railway Sewing Machine, with (2) heads, 140"wide.
Menzel Tubular Scray, Type 138SCO121, year 2002, 138" wide.
Mahlo Straightener, 142" wide, (6) optical eyes, Type RFMC-10A, # 2568631520, year 2003.
E&L Driven Scroll Roll, 140" wide, E&L slat roll expander, 140" wide.
Operators Platform.
Pup Tenter, Type CAVISCAT-PLANT, year 2002, 300cm working width, 350kw, with E&L optical rail guides, Type FR5502, pinning brushes, over and under rail, 30â?? long, (2) steam boxes, 36" wide x 3 meters wide.
Cavitec Powder Coater.
Infrared Oven, 10â?? long x 3 meters wide, infrared heaters.
(4) Chilled Rolls, 138" wide, (1) roll is 12" diameter, (2) rolls are 16" diameter, 4th roll is a rubber roll 12" diameter.
Budzar Chiller, operates with compressed air.
(2) Center Wind Let-Offs.
Operators Platform.
Menzel Tubular Scray, Type 138SCO2470, year 2002, 138" wide.
4-Roll Beater Roll above scray, 80" wide, with collection box.
Orthomat Mahlo Straightener, 142" wide, (6) optical eyes, Type RFMC-10A, year 2003.
2-Roll Surface Winder, 140" wide.
A/C Inverter Drive.
Caviscat 200 Scatter coating unit.
The coating unit is suitable for continuous powder application on guided horizontal surfaces. The fabric to be scattered runs at constant speed below the solidly assembled coating unit. The powder is fed into a funnel which disperses it onto a turning roller. A resiliently assembled doctor blade wipes the excessive powder off, leaving it in the intermediate space of the roller surface only. The powder is brushed out of the scatter roller by one oscillating brush and drops onto the fabric underneath.
The scatter coating unit, made in steel, consists of:
- welded, vibration-free steel construction
- lateral cheeks in the powder hopper, manually infinitely adjustable for different scattering widths
- powder funnel, capacity approx. 120 liter/m coating width
- scatter roller covered with special needle clothing
- resiliently assembled doctor blade
- drive unit with adjustable DC-motor
- oscillating brush with pivoted guiding and built-on distribution sieve
- brush with attached distribution sieve can be swiveled away for cleaning and maintenance purposes by pneumatic cylinders.
- drive of oscillating brush with frequency controlled AC-motor, shock absorbed.
- control panel with on/off switch for roller, brush, motor and remote-control switches are completely integrated into the machine housing
- to limit dust emission, the distributing section is enclosed at the in- and outlet sides
- a speed synchronization device synchronizes the speed of the scatter coating machine with the production line speed, enabling the application rate to be automatically adjusted
Powder conveying system SFG 35
The powder conveying system is used for the automatic feed-in of powder from a silo, bag or container to the scatter coating machine.
A turbine produces negative pressure which causes the powder to be conveyed to the unit through a hose assembly. Maximum conveying distance is 20 m (On request bigger distances)
The powder is separated from the transporting air flow by a multiple bag filter and filled into the powder dispense.
After a cycle time which can be set by the operator, the container is emptied into the scatter machine hopper. After emptying, the bag filter is cleaned with a blast of oil-free, compressed air. The powder dispenser is mounted on a reversing motor-driven carrier and thus distributes the powder uniformly into the hopper of the scatter machine. A level sensor ensures the accurate filling by stopping and starting the filling cycle.
The scope of supply includes an anti-static feed hose of 8 m length and an electronic control system. The turbine is mounted within the carrier.
Maximum capacity: 350 Kg/h
Connected load: 2.2 kW |
