| HILLS Bi-Component Spinning Machine, 2001 yr, NEW and unused. |
| Item Number | 8669 |
| Quantity | 1 |
| Machine | HILLS Bi-Component Spinning Machine, 2001 yr, NEW and unused. |
| Description | Produces FDY Bi-Component Fiber in Sheath/Core Configuration
PA 6.6 Core, Sheath Polymer,
Denier Range 30-120 per Thread Line
2 Spin Positions w/8 Thread Lines per Position
1 Extruder for Sheath, 1 ¼" Diameter Screw, 24:1 LD Ratio
3 Heating Zones, Air Cooled, Screw Puller
1 Extruder for Core, 1 ½" Diameter Screw, 30:1 LD Ratio
4 Heating Zones, Air Cooled, Screw Puller
Pellet Supply System for 2 Components w/ Conveyor
Spin Beams, Packs w/ Separate Temperature Controls
Spin Pack Temperature Range 200 ? 350 Degrees Celsius
Quench Section, Finish Applicators, 2 Stage Draw Zones
Relax Zones, Air Entangling
4 Threadlines per Pack, 2 Packs per Position= 16 Threadlines
2 Toray Winders Model TW 531/4
4 Cop, Automatic Transfer, Manual Doff
Winder Speed Range 2000-4000 Meters per Minute
PLC Controls

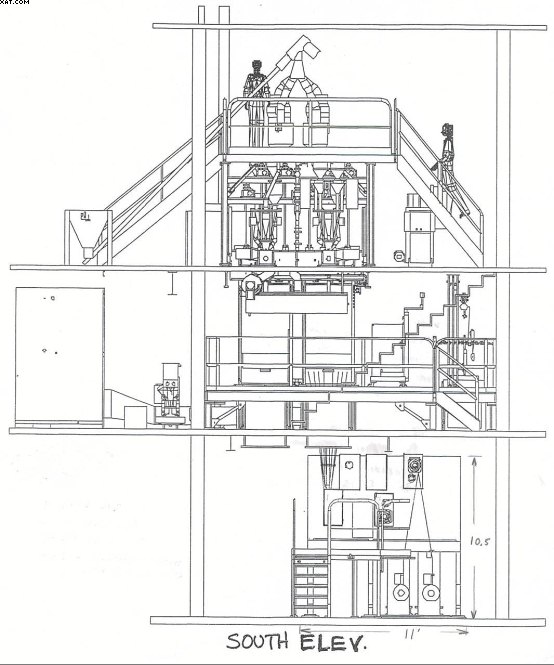

Drawing/Layout Available
Operations/Instruction Manual Available
Does NOT include main structure.
Designed to produce fully drawn yarn in sheath / core configuration. Two 1.5" extruders 30:1 with 8 threadlines each. After Quench and Finish application, the yarn is drawn in a two stage draw zone followed by a relax zone. There is a tension control zone to enable yarn entanglement prior to wind-up. One spinning position is fully equipped while the second position does not include the systems from below Finish Application through Toray Model TW 531/4 winders.
The fiber produced is a sheath-core with sheath polymer and PA-6,6 Core. The Bicomponent Spinning Machine has the capability of varying the composition from 50% to 70% by mass of PA-6,6 and 30% to 50% of the sheath polymer. The Bicomponent Spinning Machine is capable of FDY processing (excluding Winding) over a speed range of 1500 - 4000mpm and Winding speed range of 2000 - 4000mpm. Drawn denier range is 30 - 120 per thread-line (180-denier is possible). Products at denier range of 120 to 240 are made by combining ends. Additional details available upon request. |
 |
