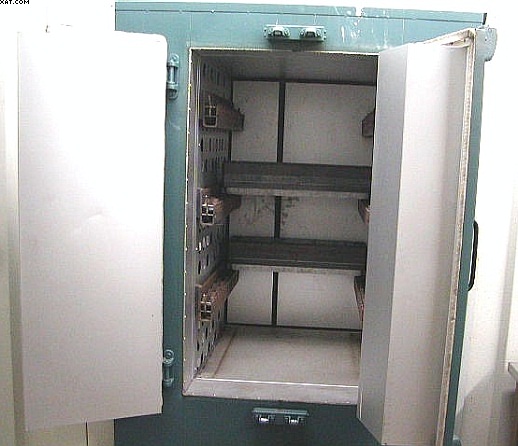

GRIEVE Pass Through Batch Oven, 650*F, 24" x 36" x 45" H inside,
Item Number7490
Quantity1
MachineGRIEVE Pass Through Batch Oven, 650*F, 24" x 36" x 45" H inside,
DescriptionModel HB-650, double doors each side for flow through operation, 3 sets heavy duty conveyor type rolls on sides. Last used to roll spin packs into oven for preheating after rebuilding, 6" thick insulated doors, Heat input: 15 KW, Max. temp: 650*F., 460v, 21 amps, 3/60. Fan motor 1/2 hp, 208/230, 1725 rpm, 2.6 amps. Outside dimensions: 55 1/2" wide (including control) x 81" high x 50" front to back. Eurotherm Digital controller with Safety excess temp. control. Buttons for Blower On, Heat On, On/Off, and Emergency Stop. Original photos show oven when sold in 2015.
GRIEVE Pass Through Batch Oven, 650*F, 24" x 36" x 45" H inside,
GRIEVE Pass Through Batch Oven, 650*F, 24" x 36" x 45" H inside,  GRIEVE Pass Through Batch Oven, 650*F, 24" x 36" x 45" H inside,  GRIEVE Pass Through Batch Oven, 650*F, 24" x 36" x 45" H inside,  GRIEVE Pass Through Batch Oven, 650*F, 24" x 36" x 45" H inside,
