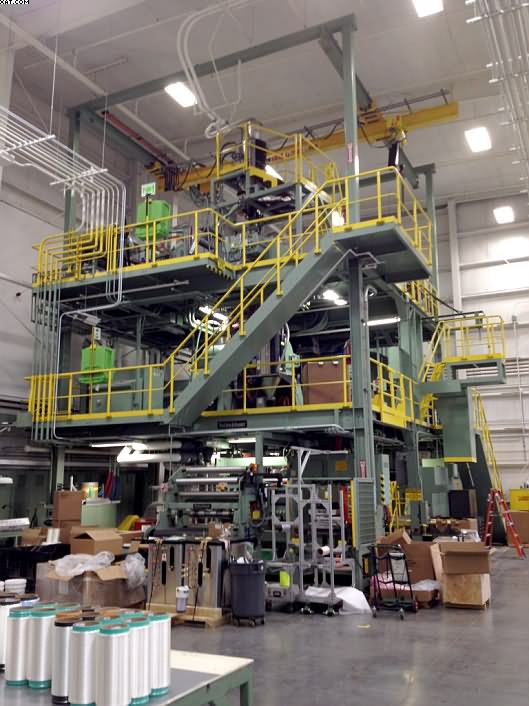

| REIFENHAUSER Reicofil 2 Spunbond Pilot Nonwoven Line, |
| Item Number | 15997 |
| Quantity | 1 |
| Machine | REIFENHAUSER Reicofil 2 Spunbond Pilot Nonwoven Line, |
| Description | - 1 meter wide with web former, calendar, and winder.
- Reported converted from Model 1 (1989) to Model 2 with larger die and spinneret in the machine direction with quench having higher speed capacity.
- Originally with 70mm extruder but was updated with Davis-Standard 3.5" Extruder (new 2000 installed in 2008), 30:1 L/D, 125 HP AC vector motor and drive. The extrusion and melt path temperature and drive control is all new on a Davis-Standard EPIC control system. ~(5) spinnerets available.
- KUSTERS Calendar, 1 meter working width (47" wide rolls), gauges to max 860 PLI, hot oil on main rolls, with (2) water cooled S-wrap web cooling rolls exiting the calendar point. IR heating units to preheat prior to calendar. Includes (14) rolls - Some steel engraved, some steel un-finished - Some are hard rubber or Ebonite, some of these are engraved, some are un-finished. Includes hot oil heater and chiller. The hot oil system is all original but has been serviced by Kusters and is in great shape.
- The Linde Quench system is original but reported is still in great shape.
- REIFENHAUSER Automatic Winder - A Tidland rotary shear slitter is in place of the original crush cutters which worked best for heavier materials.
- 2 ton bridge crane on the top level.
- The controls are part original and part updated. All of the "line drive" motors, gearboxes, and drives updated with AC vector units. The calendar and winder controls were updated also.
- NOTES:
- Max line speed is 150 feet per minute. The web former, calendar, and winder are all run in coordination at a matched speed and can also be run individually.
- The resin dryers and the extruder screw are not included with the line.
- Footprint 588" in machine direction x 446" in the cross direction, and 362" H.
- The equipment has very low hours being a part time lab line its entire life. Ran mostly PP. Currently under power and last run April/May 2016. |
