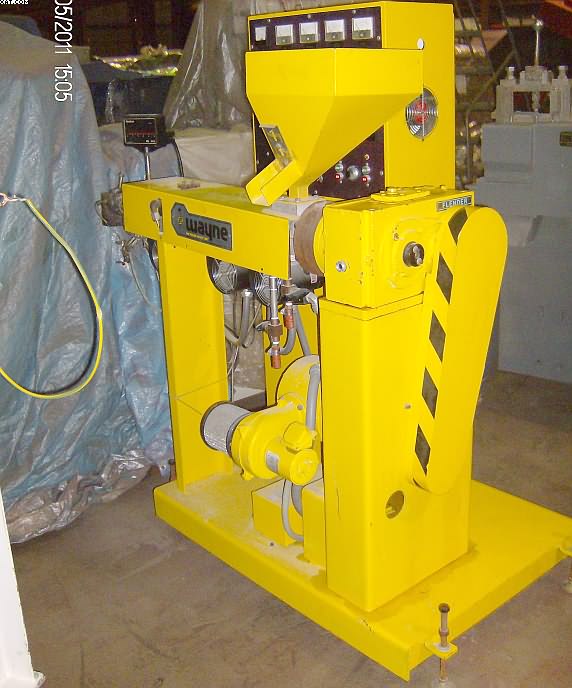

| WAYNE YELLOWJACKET Extruder, 1" diameter screw, |
| Item Number | 14057 |
| Quantity | 1 |
| Machine | WAYNE YELLOWJACKET Extruder, 1" diameter screw, |
| Description | 30:1 L/D, vented and plugged, electrically heated, Air cooled,
SN: 4679899, 5-zone over barrel control panel with 3-barrel and 2-die zones with Athena digital controllers, ammeters per each zone, analog screw RPM and motor amp gauges, Digital Dynisco PSI gauge, 10-turn speed pot, unitized on standard base with casters, driven by 5 hp DC motor with cooling fan and panel mounted SCR drive controller, belt drive to Flender gearbox. Rated for 10 HP with 10.7331 reduction ratio, units has water cooled feed throat and has an 8" Barrel extension with 4-hole strand die. |
