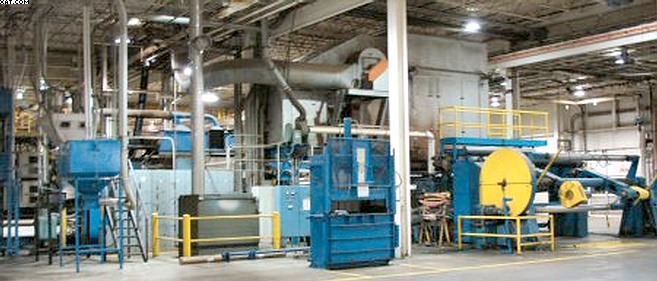

| EGAN 120" Extrusion Laminating Line, |
| Item Number | 12654 |
| Quantity | 1 |
| Machine | EGAN 120" Extrusion Laminating Line, |
| Description | Turret unwind w/ 12k lift table
Splicing station
Infeed pull roll
Top Fife edge guide
Pillar Corona pre-treater E3 epoxy roll ? 3? of fingers 10000v +
Flexographic Gravure Print Station, single color
Gas Loop dryer, 2 pass
LFE Scanner to gauge thickness (radiation source removed)
Whitlock blender (1999) w/ hoppers
6" Extruder, ~ 450hp DC
4.5" Extruder, ~ 250 hp DC
Extruders water cooled ? spare heaters available
Die - 138".
Aux unwind station with turret unwind (manual splice), 12k lift table
45 deg turning tube
Laminator Hyd Nip Station, 122" wide, 36" dia chill rolls (shiny & dull rolls available), slitter w/ Bloapco trim removal
Sandpaper roll
Post gauge
Pillar Corona post-treater 10000v +
Surface rewind, sandar slitter/splicer, auto doff, 3 winder shafts
3 hoists (1) 7.5 ton and (2) 5 ton with bridge crane.
Utilities - DC power - 120 psi - 50 deg chilled water |
