| REG-MAC Tub Densifier, 2007 YOC, |
| Item Number | 12181 |
| Quantity | 1 |

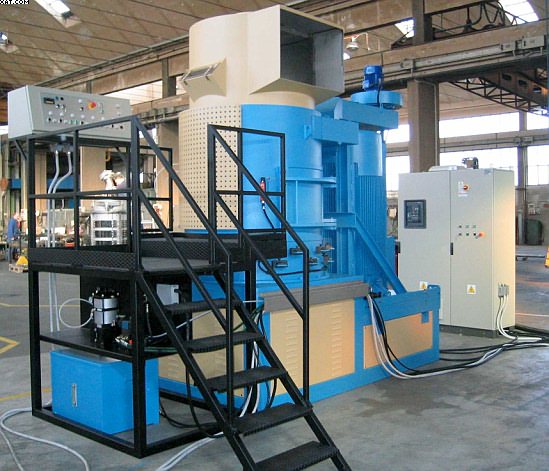

| Machine | REG-MAC Tub Densifier, 2007 YOC, |
| Description | LESS THAN 40 HOURS USE. Can run PET or FILM
CAPACITY: 0,90-1,10 Ton/h, according to shape and thickness of ground dry PET.
Main motor Kw 400 / 480 V / 60 Hz / 3-phase,
rotor-case with oil-lubricated bearings,
central oil-lubrication tank with pump and filter,
water-cooling system (rotor),
working cylinder containing 2 rotating knives fitted on the rotor and a set of fixed knives fitted on the wall,
pneumatic piston for opening the unloading door and inlet of the cooling water, driven by electro valves,
main electrical board with star-delta switches and control panel for operator?s driving,
steam suction system, stainless steel, by means of fan with open impeller,
electrical system including a special device which does not allow the main motor starting in case of lubrication failure,
lateral door for inspection and service,
upper security cover at feeding inlet,
all safety equipment according to CEE regulations
*automatic belt tension system with hydraulic pistons and cooling fan. SOFT-START DRIVING SYSTEM, UNLOADING/COLLECTING TANK with 2 extraction augers
Cylinder diameter - 1200 mm
Rotating knives no. - 2
Fixed knives no - 21
Main motor power - 400kw
Total installed power -410 kw
Power absorption - approx. 75%
Water consumption - 200 Lt. per hour
Compressed-air consumption - @ 6 atm., 120 Lt per hour
Working staff - 1 unskilled worker
Overall dimensions - 3900 x 5500 x 3350 mm
Total weight - 7200 kg
Comes with all manuals. |
 |
|
|
