| PLANTEX BCF Filament Line, 1998, tri-color, 150-288 kg/hr, |
| Item Number | 11930 |
| Quantity | 1 |
| Machine | PLANTEX BCF Filament Line, 1998, tri-color, 150-288 kg/hr, |
| Description | polyamid and polypropylene 1000-6000 dtex. Can be run as 1, 2, or 3 color solution dyed.
12 threadlines for 1000-3000 den.
6 threadlines for 3000-6000 den.
Filament range 15 to 25 den/filament
Plant features:
3 Extruders.
1 Spin head.
9 Spinning pumps.
3 Spinning positions.
12 Spinning packs.
36 Spinnerettes (Trilobal with cleaning by Ultrasonic).
Godets:
Pre-tension godets - (1) motorized roll with 1 idler roll per spinning position.
Slow Drawing godets - (1) motorized heated roll with 1 idler roll per spin pos.
Fast Drawing godets - (2) motorized heated rolls per spinning position.
Take-up feeding godets - (1) motorized roll with 1 idler roll per winder (2 ends).
Maximum-speed - 3,000 m/min.
Texturising system:
(3) Texturising positions.
(12) Texturisers (4 each texturising position). (Compression in channel).
(3) Cooling drums (4 ends each).
(6) Interlacers: (2 ends each).

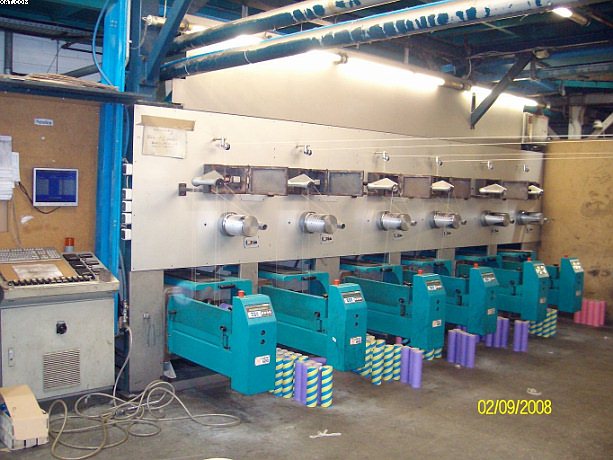

(6) Winders:
Maximum speed - 3,000 m/min.
Bobbins - 2 per winder.
Winding tube I.D. - 73 mm.
Winding tube O.D. - 79 mm.
Winding tube length - 290 mm.
winding traverse stroke - 250 mm.
Bobbin max. diameter - 360 mm.
Bobbin max. weight - 4.5 kg.
Line has now been stopped and reported in good condition.
Voltage 380 V / 3 / 50 Hz, Production is ca. 150 -250 kg/h depending on raw material, speed and Titer. |
