| WELEX / SAHM Polypropylene Multifilament Line, |
| Item Number | 11897 |
| Quantity | 1 |
| Machine | WELEX / SAHM Polypropylene Multifilament Line, |
| Description | (1) Conair Franklin Surge Bin w/ 3300 lbs capacity.
(1) Conair Franklin Vacuum Loader w/ resin hopper.
(1) Manually fed color resin hopper.
(1) Foremost Vacuum Loader w/ color resin hopper.

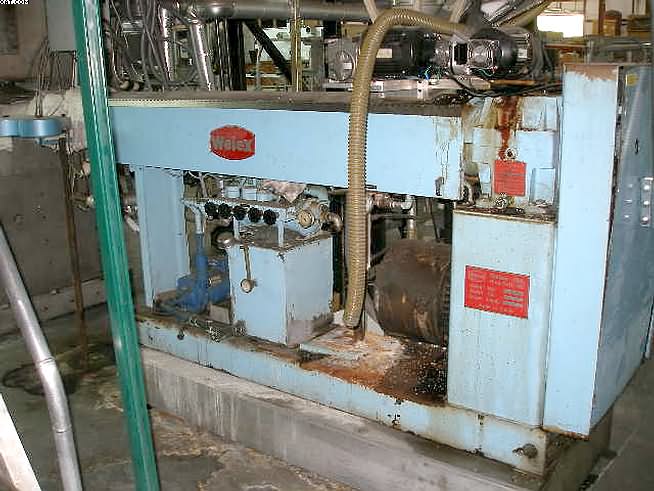

(1) Welex Extruder, Model RHNV, 1989 yr, 2" dia x 30:1 L/D, 25 hp DC motor & panel, 5 heat zones on barrel, one heating band per zone.
(18) Additional heat zones on screen changer, piping, spin blocks and spinnerets (heater zone controls replaced 1995 yr).
(1) Hitech Hydraulic Screen Changer, automatic, (2) sets of screens, 2003 yr.
(1) Single Spin Beam with (4) spin boxes, each spin box with 4 spinnerets, single thread line per spinneret.
(4) Quench Chambers, two on each side, each quench chamber has two heated draw rolls 4.5" x 8" wide.
(4) Sahm DSG4006 Takeup Winders, 1988 yr, four cop, 24" traverse, 3-5/8" paper tube, individual variable speed motor per winder and individual motor and stop motion per thread line.
All motors, drives, controls replaced 2000 yr.
Mezzanine. |
