| STERLING / SAHM Polypropylene Multifilament Line, |
| Item Number | 11896 |
| Quantity | 1 |
| Machine | STERLING / SAHM Polypropylene Multifilament Line, |
| Description | (1) Conair Franklin Surge Bin w/ 3300 lbs capacity.
(1) Conair Franklin Vacuum Loader w/ resin hopper.
(2) Manually fed color resin hopper.
(1) Conair Franklin Vacuum Loader w/ color resin hopper.

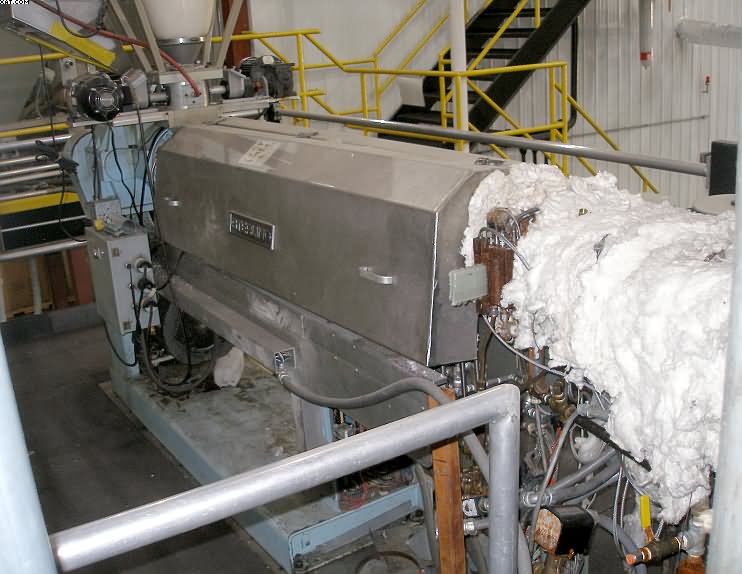

(1) Sterling Extruder, 1978 yr, 2" dia x 36:1 L/D, 20 hp DC motor & panel, 5 heat zones on barrel, one heating band per zone.
(20) Additional heat zones on screen changer, piping, spin blocks and spinnerets (heater zone controls replaced 1995 yr).
(1) Hitech Hydraulic Screen Changer, automatic, (2) sets of screens, 1998 yr.
(1) Single Spin Beam with (4) spin boxes, each spin box with 4 spinnerets, single thread line per spinneret.
(4) Quench Chambers, two on each side, each quench chamber has two heated draw rolls 4.5" x 8" wide.
(4) Sahm DSG4006 Takeup Winders, 1988 yr, four cop, 24" traverse, 3-5/8" paper tube, individual variable speed motor per winder and individual motor and stop motion per thread line.
All motors, drives, controls replaced 1995 yr.
Mezzanine and 1/4 ton Coffing electric chain hoist. |
