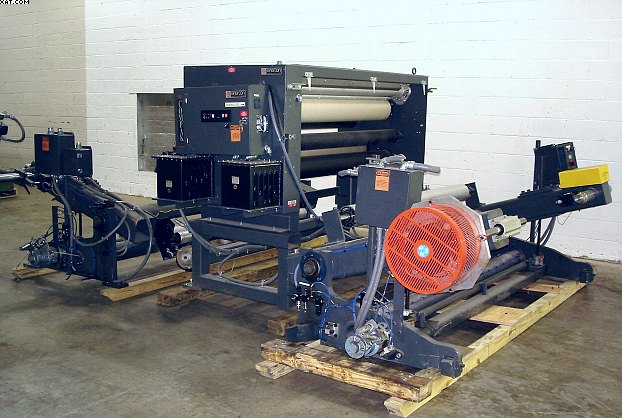

| ENERCON Corona Treater, 62" working width, |
| Item Number | 11183 |
| Quantity | 1 |
| Machine | ENERCON Corona Treater, 62" working width, |
| Description | 2 sided, tension control, electrode, ceramic rolls. Treated roll has 8" diameter.
Electrodes - EACH 11 KVA, Model TF1003, volts in 175 rms - 9500 out, amps in 40 - out 0.37, frequency 10-30 khz.
Control panel - 10 KW, Model LM 3732-09, amps in 31 - 80 out.
Unwind - shaftless roll lift, single position unwind, electronic screw lift, 8" Montalvo disc brake.
Rewind - shaftless roll lift, single position, electronic screw lift, 8" Tidland chuck, can handle up to 50" diameter rolls.
OAD: Unwind - 137" L. x 60" W.
Rewind - 143" L. x 66" W.
Main: 110" L. x 40" W.
Estimated weight of all three pieces: 6,000 lb. |
| Quote |   |
