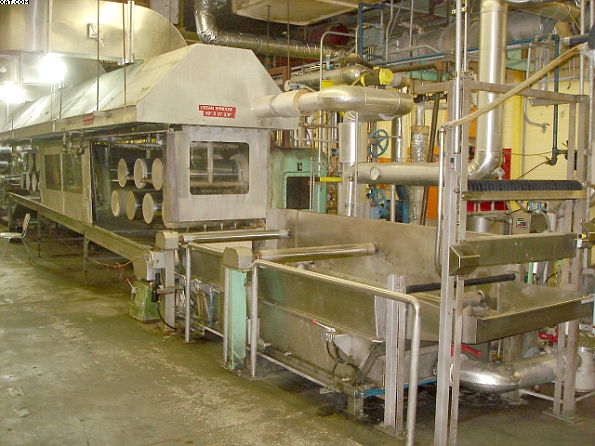

| NEUMAG Draw Line, ~43MM lbs annual capacity. |
| Item Number | 10651 |
| Quantity | 1 |
| Machine | NEUMAG Draw Line, ~43MM lbs annual capacity. |
| Description | Capacity @ ~ 78-80% utilization on polyester ~ 120,000 lbs/day, 840,000 lbs/wk, 3,360,000 lbs/mo, 43,680,000 lbs/yr.
Drawline 1 consists of:
Creel - tow puller, raises & lowers, spreader bars.
Dip Bath - heat exchanger, finish metering system for two finishes.
Pre-Draw Stand - 150 hp DC, draw force ~ 4 grams / denier on poly, nip roll, (7) rolls 358mm x 1 meter, heated.
Deluge draw system - heated finish pumped on fiber at high rate to condition for drawing.
Post-Draw Stand - 250 hp DC, 270 mpm, no heat or cool capability.
(2) Tow Stackers.
(2) Dancer Rolls.
(2) Steam Chests.
(2) NKR Crimpers - 180mm, 40 hp DC, box PSI controlled, air over hydraulic, finish recycling system.
(2) Incline 16" Conveyors to snorkels.
P&S Conveyor Dryer - 8' wide x 40' oven, gas fired, 3 heat zones and 1 cool zone. Has atomizer (H2O) system for nylon installed. Fiber shrinkage @ ~25% in heatset process.
Tension Stand - pneumatic.
Final Finish Applicator - micro motion technology.
Lummus Mark V Tow Cutter - RH, cut range from 1.0 to 7.5 inches. Includes 1 cutter reel. Others available separately.
Mill-Tronics Weigh Belt System.
Lummus Pease Wheel Blower - model 196 to pre-open fiber to baler.
Individual components available separately. |
