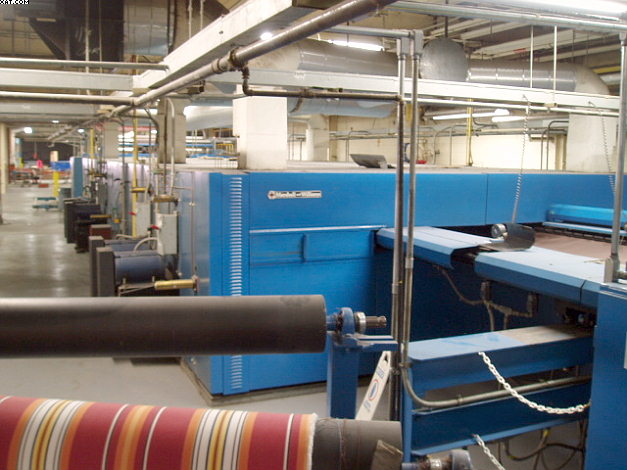

| MARSHALL & WILLIAMS Clip Tenter Range, 1990 Year, 12' |
| Item Number | 10515 |
| Quantity | 1 |
| Machine | MARSHALL & WILLIAMS Clip Tenter Range, 1990 Year, 12' |
| Description | Consisting of :
Idler type Cradle.
M & W Stainless Steel Pipe Scray 128" wide with driven pull roll.
Menzel 4-Roll Spiral Type Brusher, 130" mounted on gantry.
Erhard & Leimer Pivot Guider type FE1353.
Sky-Stand approx. 12? long.
M & W Gas Fired PreDryer, 4-burner Single Pass, Marsden type burners.
EVAC Water and Lint Removal System, 50-HP 575 volts, 130" Slot, Trap and Silencer.
Kusters Horizontal Finishing Padder, 21" dia. Rubber Rolls, Double Dip Immersion Pan (with only one immersion roller in place), 15-HP DC drive motor.
Mahlo Weft Straightener RFMC-94H, 9/1994 (Rebuilt by Mahlo), 72" face width.
Bianco Weft Straightener, 130" face width, 8-optical heads (1994).
Operator Platform
12? M & W Clip Tenter Entry with 127" feed roller, Swing Rail with E & L Rail Guiders, Proportional Rail Drives.
M & W 4-Zone Low Profile Gas Fired House with Maxon 415 Burners and Eight 15-HP Circulation Fans (two per zone).
10? Exit Section with Stripper Roll, Mount Hope Skew Arrangement and 3-Roll Draw Set, and Bianco Sensing Station with 4-Optical Heads.
3 - 130" Cooling Cans (Chilled water).
Menzel 120" wide Accumulator with 11-rolls up and 12-rolls down, 3-yards travel for total of approx. 72 yards capacity, chain drive on each corner.
Marshall & Williams Two-Roll Draw Set.
Menzel A-Frame Winder 130SB, Yr. 1990, converted to electric drive on lay-on roller, hydraulics used only for lifting lay-on roll. |
