BEHRENS Model CB20-II Turret Punch, 31 Ton, 1996 yr, CNC.
Item Number	10503
Quantity	1

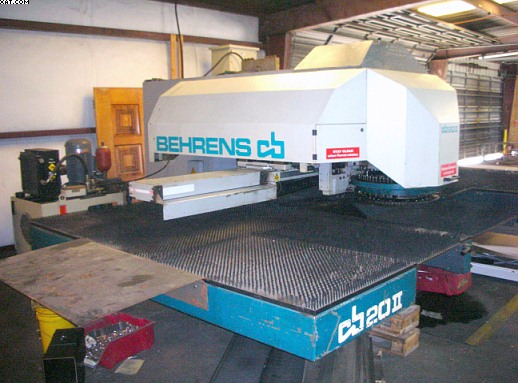

Machine	BEHRENS Model CB20-II Turret Punch, 31 Ton, 1996 yr, CNC.
Description	Work area without adjusting - 50" x 100" Maximum punch diameter - 4" Maximum sheet thickness - 1/4" Maximum workplace weight - 550 pounds Linear table speed - 3,150 IPM Punching speed (contouring) 600 HPM Number of tool stations - 21 Number of indexable stations - 3 required space for machine - 18' 6" x 16' Height - 90" Weight - 38,000 pounds Repeatability - +/- .004 Equipped with: IBH CNC control with 12" CRT screen Brush table design Automatic Sheet Repositioning 112 Style tooling Heavy duty pneumatic work clamps Trap door with 2 separate tab breakers Laser safety curtain. Video available upon request sent via e-mail.

Please feel free to Contact Us with any
Questions or Equipment Inquiries. Thank You!
